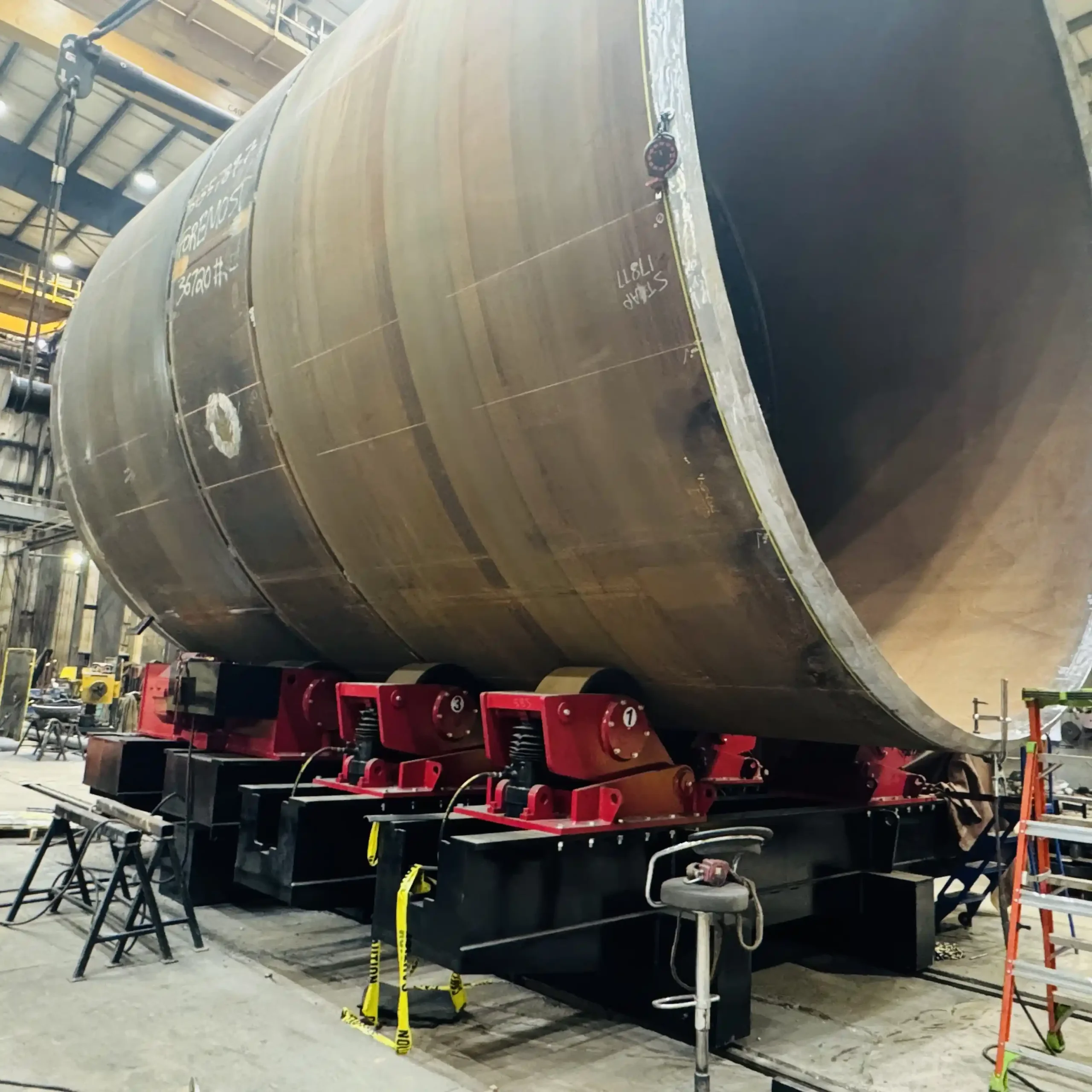

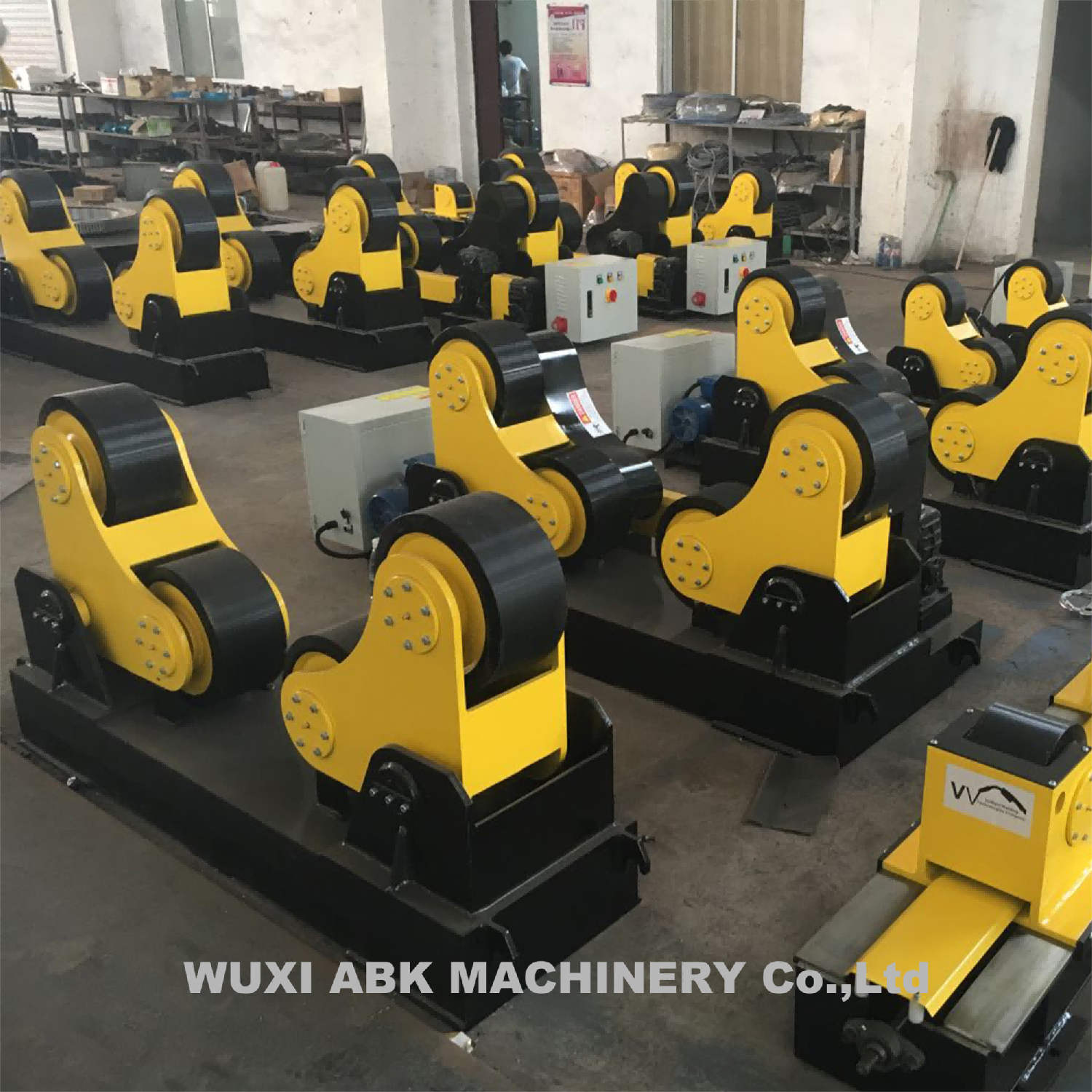

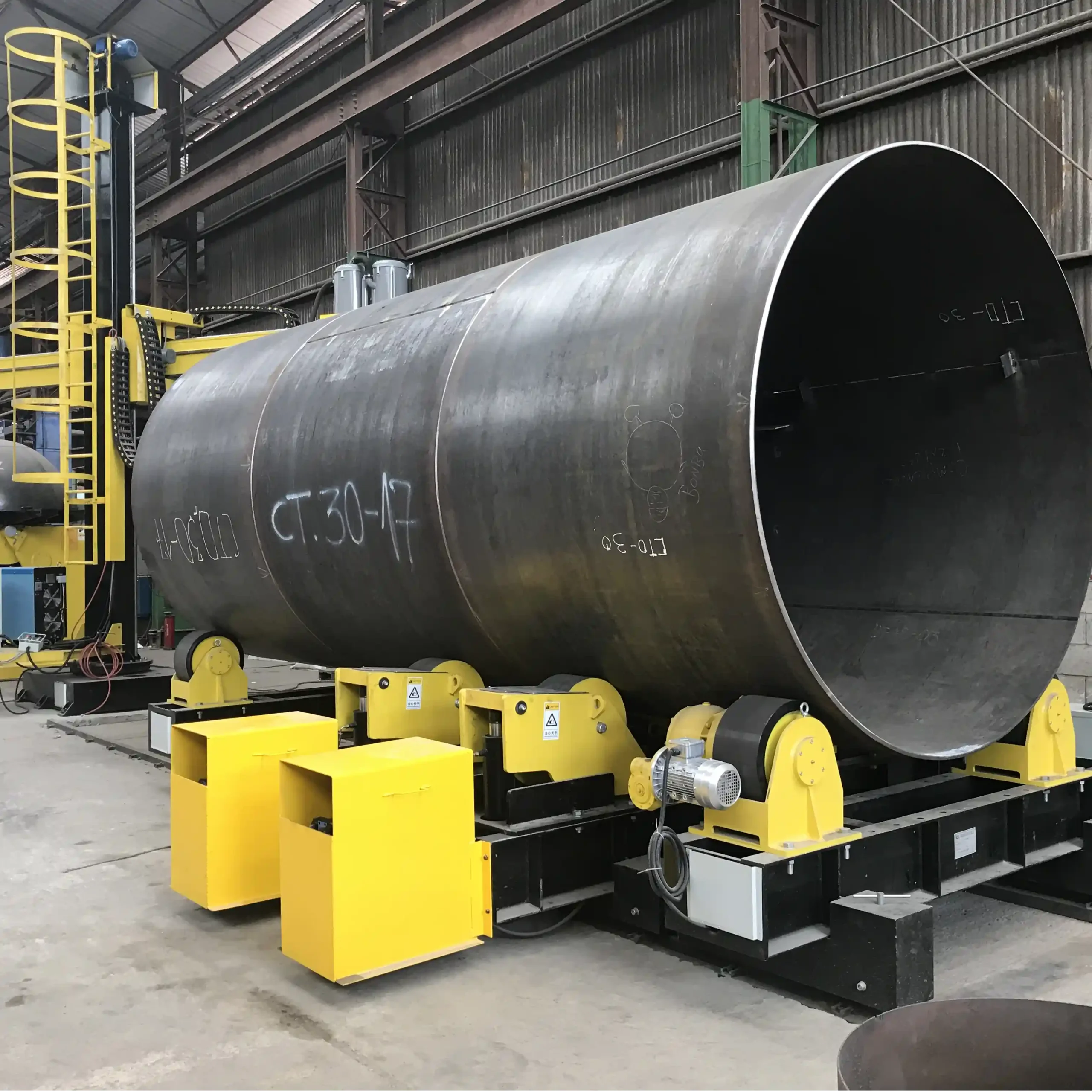

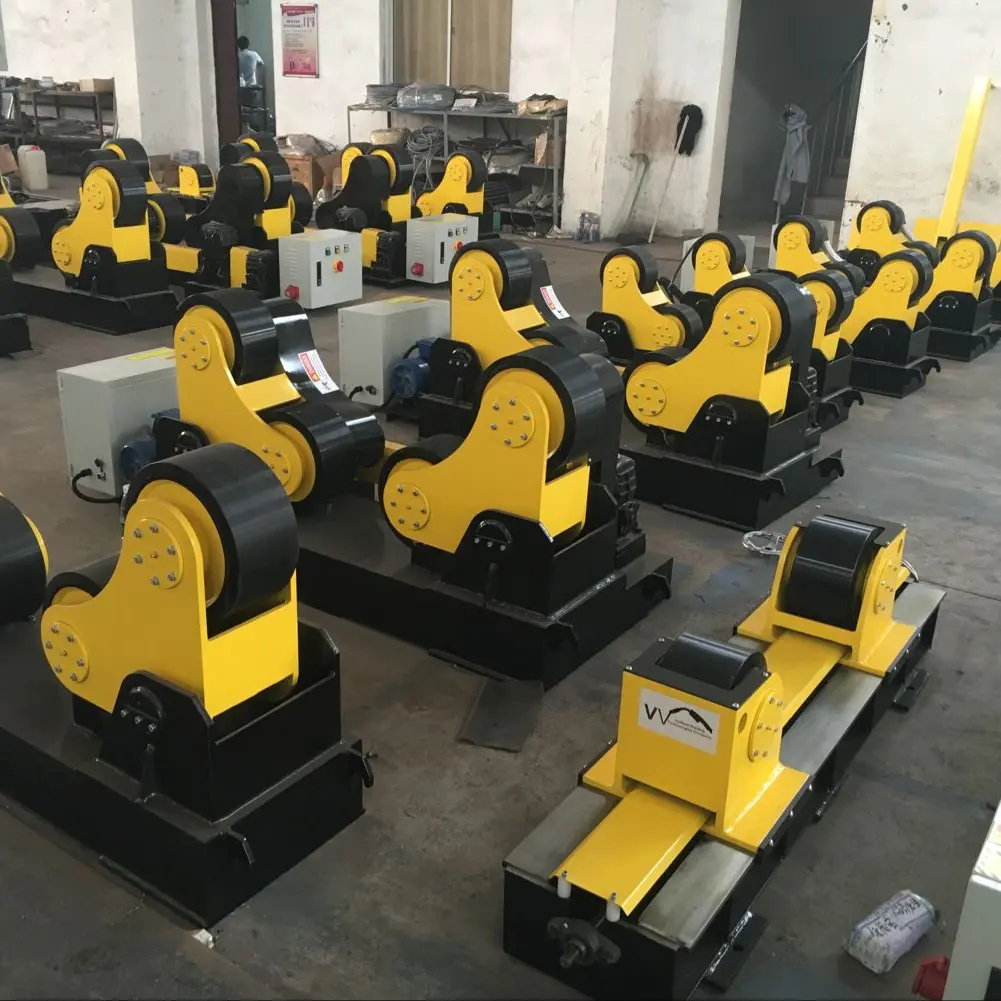

Welding Rotators

Technical specifications

Parameter

Range/accuracy

Application scenario

Carrying Capacity

1-300 tons (customizable)

1-50 tons: general machinery

100-300 tons: heavy parts for ships/nuclear power

Spin Velocity

0.05-5 RPM (adjustable servo drive)

0.05-0.5 RPM: high-precision welding

1-2.5 RPM: conventional production

Angular accuracy

0.01° (high end) to 2° (base)

0.05°: aerospace/nuclear power

1°: pipeline/steel structure

Selection suggestion

High-load/eccentric workpiece: self-aligning roller frame (hydraulic compensation for eccentric load, bearing 200 tons+)

High precision requirements: servo motor+harmonic reducer (accuracy 0.01, dynamic stability 0.5%)

Cost-sensitive scenario: basic mechanical type (1, bearing capacity ≤50 tons, price 50% lower)

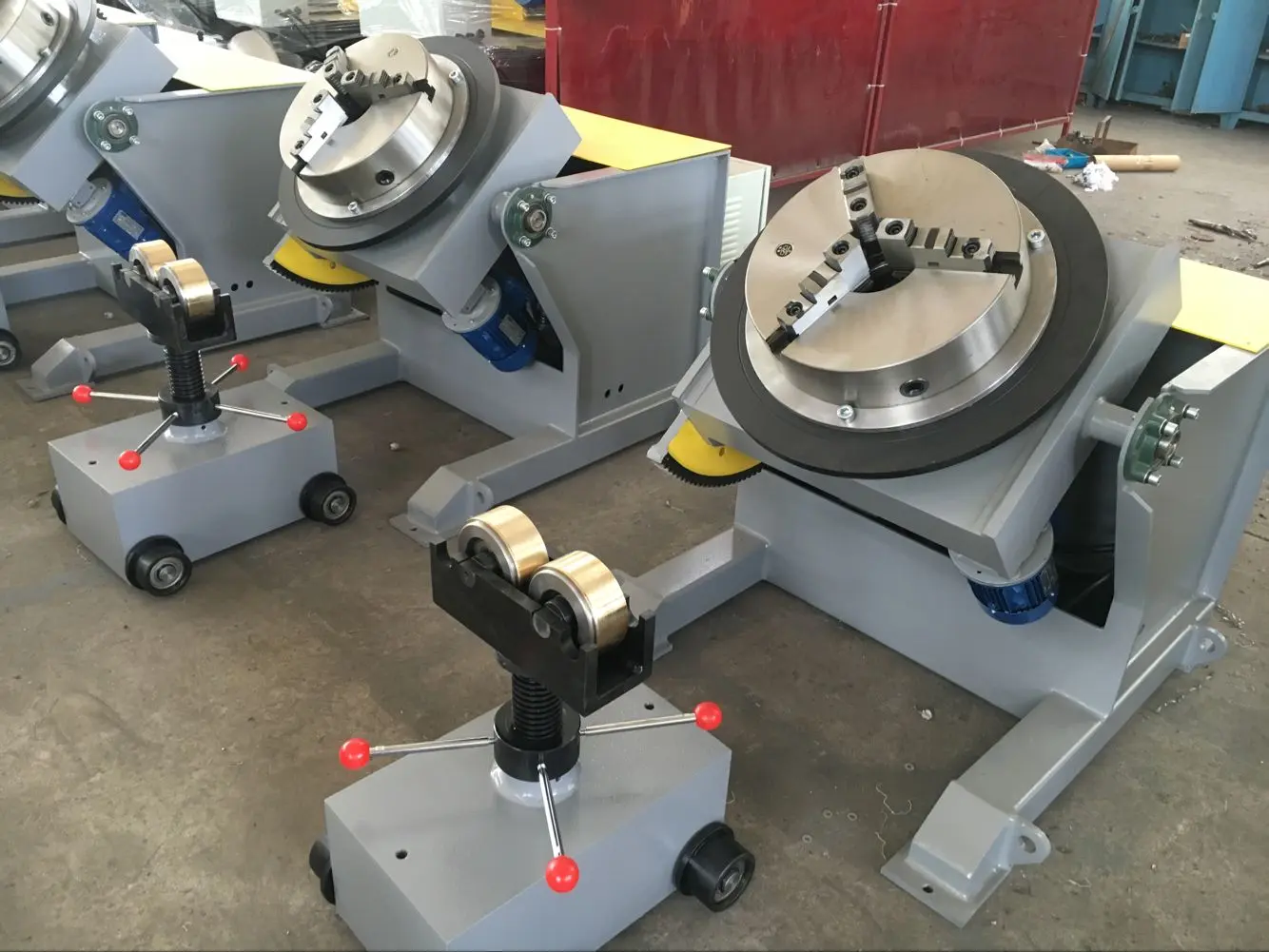

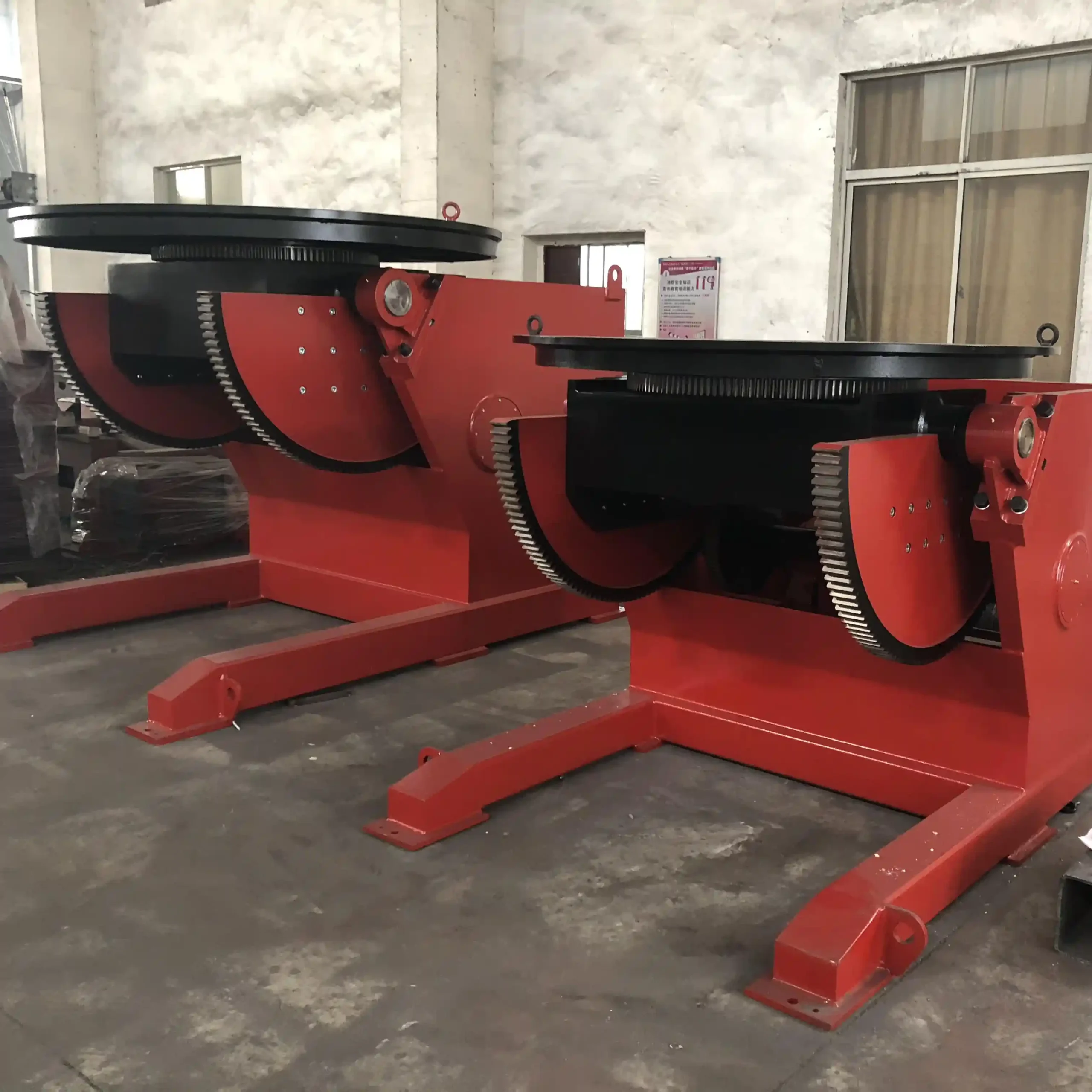

Welding Positioners

Technial specifications

Parameter

Range/accuracy

Typical application scenarios

Carrying Capacity

1-300 tons (customizable)

1-50Tons:Universal machine
200-300Tons:Nuclear power/heavy parts of ships

Spin Velocity

0.05-5 RPM(Servo drive adjustable)

0.05-0.5 RPM:High precision welding (nuclear reactor)
1-2.5 RPM:Conventional production (pipeline/steel structure)

Position accuracy

±0.01 mm(high-end)to ±0.5 mm(basis)

±0.01 mm:Laser/electron beam welding
±0.1 mm:Ship girth welding

Angular accuracy

±0.01°(high-end)to ±1°(basis)

±0.05°:Aerospace precision parts
±0.1°:Pressure vessel welding

Use case

High precision requirement: select servo drive+harmonic reducer (accuracy ±0.01 mm/±0.01°).

Heavy eccentric workpiece: equipped with hydraulic aligning device (maximum eccentric load compensation 15%)

Safety requirements: power-off locking function and interlock protection interface shall be configured.

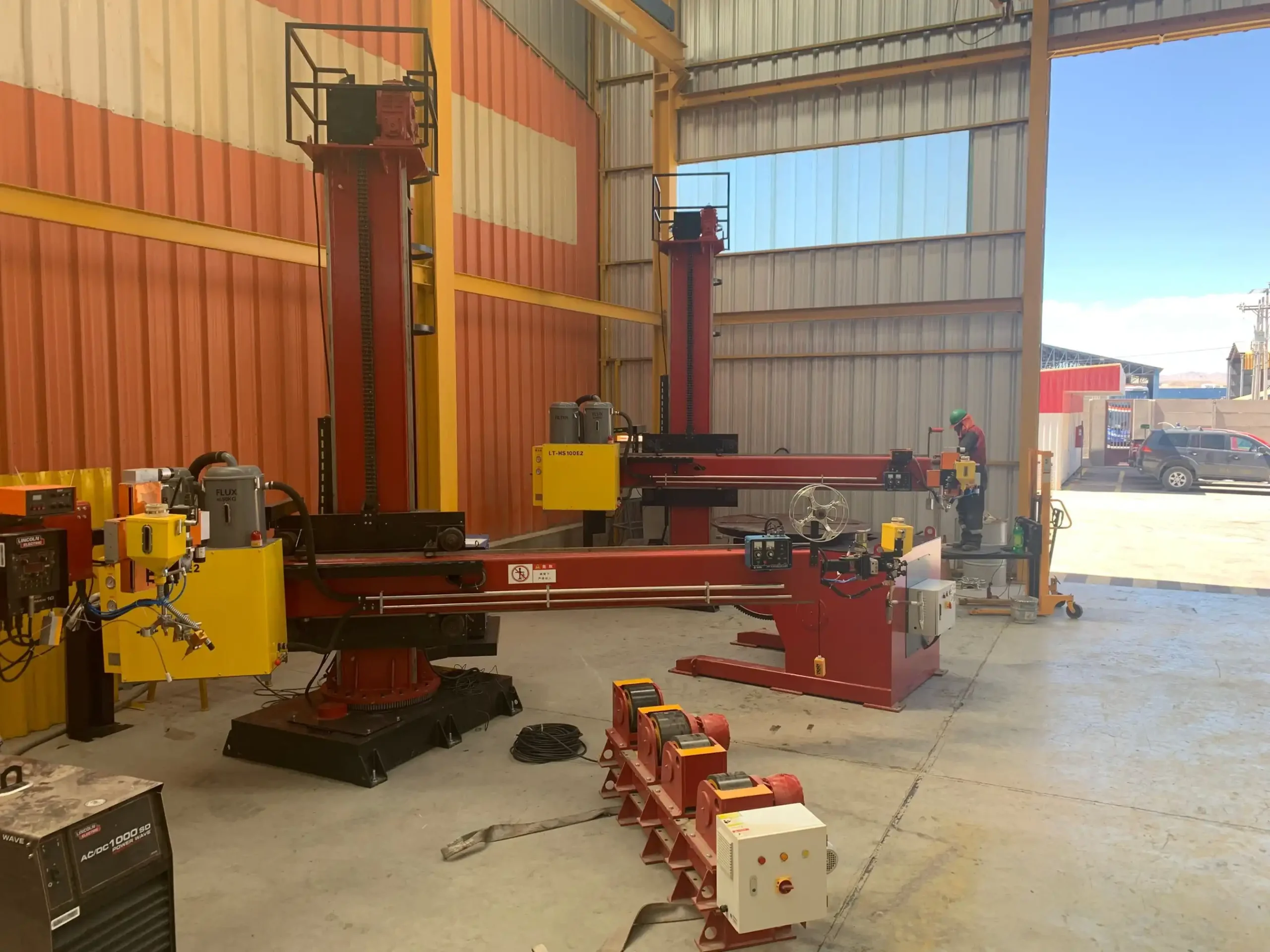

Welding Manipulators

Technial specifications

Parameter name

Description of Parameter

Typical range/example

Carrying Capacity

The maximum static load (including the weight of tools/fixtures) that can be safely carried by the cantilever end should consider the influence of dynamic moment.

50 kg ~ 2000 kg (common range of industrial grade)

Main arm rotation speed

The horizontal rotation speed of the main column affects the working efficiency, and it is usually adjustable in steps or stepless speed regulation.

0.5~5 rpm (low speed precision operation)

5~20 rpm (high-speed universal operation)

Cantilever pitch velocity

Cantilever pitch adjustment speed (electric or hydraulic drive).

0.1 ~ 2°/s (precision control)

2 ~ 10°/s (fast adjustment)

Positioning Accuracy

Control accuracy of cantilever end position (uniaxial static).

±0.05 mm ~ ±0.5 mm(High precision model)

Repetitive positioning accuracy

The deviation of returning to the same position after multiple movements reflects the stability of the system.

±0.1 mm ~ ±1.0 mm

Multi-axis linkage accuracy

Comprehensive error (such as rotation+pitch) in multi-axis coordinated motion.

±0.2 mm ~ ±2.0 mm(Depending on the control system)

Use case

Technical specifications (such as load capacity, rotational speed, precision). Application scenarios (such as pipeline welding, wind turbine manufacturing).
